Refractory Material Batching Thiab Ntim System

Refractory Material Batching thiab Ntim System

1. Khoom taw qhia:

Cov ntaub ntawv refractory batching thiab ntim ntau lawm kab integrates tsis siv neeg batching, mixing, molding, ziab, ntim thiab lwm yam txheej txheem. Nws yog qhov tsim nyog rau kev tsim cov pob zeb refractory, tsis zoo li cov refractory castables, refractory fibers thiab lwm yam khoom, thiab yog siv dav hauv kev tsim cov khoom siv kub hauv cov khoom siv hauv metallurgy, cov khoom siv hauv tsev, tshuaj thiab lwm yam lag luam.

2. Core tivthaiv modules

(1) Tsis siv neeg batching system

Muaj nuj nqi: Tsis siv neeg hnyav ntau yam ntaub ntawv raw (xws li siab alumina bauxite, silica xuab zeb, magnesia xuab zeb, binders, thiab lwm yam) raws li cov qauv.

Khoom siv: silo, ntsia hlau feeder, siv scale / load cell, PLC tswj qhov system.

Qhov tseeb: Dynamic hnyav qhov yuam kev tsawg dua lossis sib npaug li 0.5%, txhawb nqa cov mis cia thiab rov qab.

(2) Hybrid system

Muaj nuj nqi: sib tov cov khoom qhuav los yog ntub dej (yog tias cov ntaub ntawv casting, dej los yog resin xav tau ntxiv).

Khoom siv: Muab ob npaug rau-shaft paddle mixer, muaj zog counter-flow tov khoom (xaiv raws li cov yam ntxwv ntawm cov khoom).

Nta: Hnav- cov ntaub ntawv tiv thaiv thiab kaw tsim kom tsis txhob muaj plua plav tawm.

(3) Forming System (Tshwj xeeb rau cov khoom zoo li tus)

Kev Ua Haujlwm: Nias cov khoom sib xyaw rau hauv cov cib dawb (xws li magnesia-carbon cib, aluminium-silica cib).

Khoom siv: Hydraulic cib xovxwm (siab 100-3000 tons), tsis siv neeg pwm hloov khoom.

Yeem: Neeg hlau palletizing los txo cov kev cuam tshuam ntawm phau ntawv.

(4) Qhuav thiab Sintering (yeem)

Tunnel drying kiln: Tshem tawm cov dej noo thiab ua ntej -sintering los txhim kho lub zog.

Kev tswj kub: 200-600℃(kho raws li cov khoom siv).

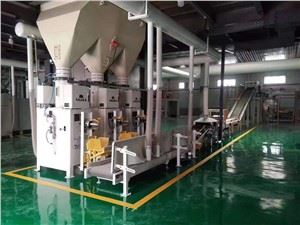

(5) Tsis siv neeg ntim tshuab

Kev Ua Haujlwm: Cov khoom tiav qhov hnyav, hnab ntim khoom (ton hnab / hnab me), sealing, thiab sau ntawv.

Khoom siv: Valve hnab ntim tshuab, kub sealing tshuab, inkjet tshuab luam ntawv, neeg hlau palletizing. Ntim daim ntawv: 25-50kg hnab me me los yog 1-tuj hnab loj, nrog rau cov ntaub ntawv noo noo-pov thawj.

3. Technical zoo

High automation: PLC + kev tswj hwm kev lag luam hauv computer txo cov neeg ua yuam kev thiab ua kom muaj peev xwm ntau lawm los ntawm 30% mus rau 50%.

Kev tiv thaiv ib puag ncig: Cov tsheb thauj mus los tau kaw tag nrho thoob plaws hauv cov txheej txheem, nruab nrog cov khoom siv plua plav (pulse bag filter/cyclone dust collector).

Flexibility: Txhawb ntau- qauv hloov pauv hloov mus rau cov khoom sib txawv refractory (acidic/neutral/alkaline).

Durability: Cov khoom tiv tauj yog hlua nrog hnav-cov hlau tsis muaj zog lossis ceramic kom ntev lub neej ntawm cov khoom siv.

4. Yam khoom siv tau

Cov ntaub ntawv zoo li refractory: refractory cib, tshwj xeeb- zoo li cib, prefabricated Cheebtsam.

Cov ntaub ntawv tsis zoo li refractory: castables, tshuaj tsuag txheej, cov ntaub ntawv ramming.

Cov ntaub ntawv tshwj xeeb refractory: cov khoom siv silicon carbide, zirconia fibers, thiab lwm yam.
